Description

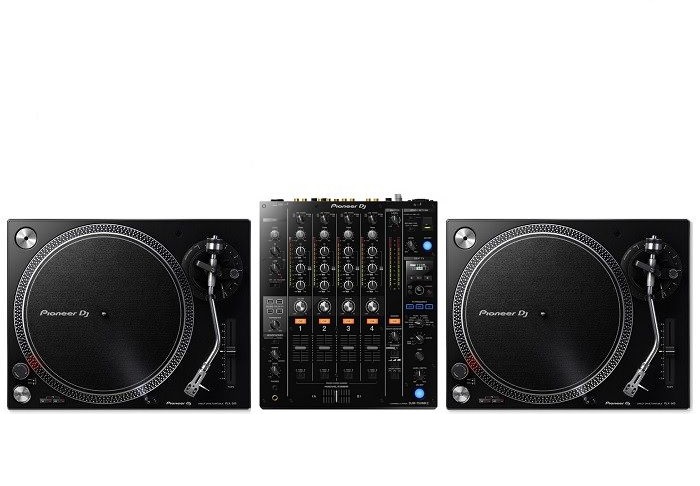

The Pioneer PLX-500 Turntable and DJM-750mk2 Mixer Package is the perfect bundle wishing to develop their analogue mixing skills as well as combine them with superior quality digital effects courtesy of the DJM-750mk2 mixer.

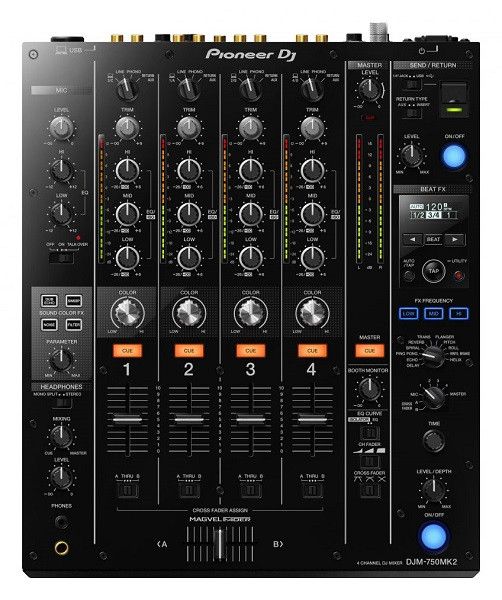

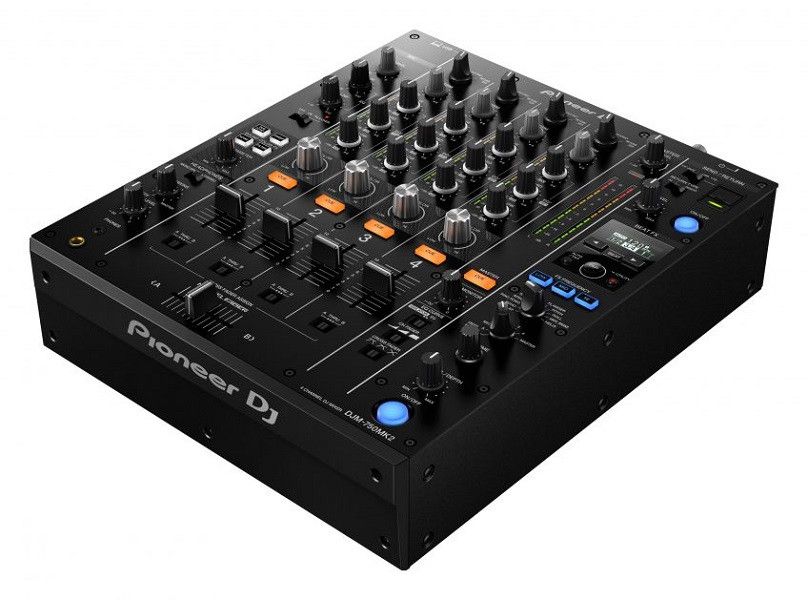

The DJM-750mk2 DJ Mixer is a superb 4-channel mixer that features a USB connection for easy plug and play functionality. In addition to this, the DJM-750mk2 also comes with the same digital signal processor as the 900NXS2.

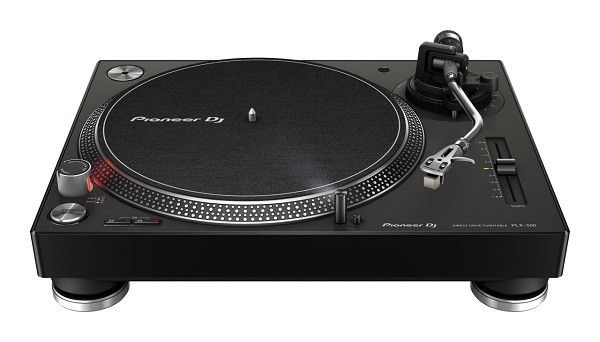

The PLX-500 Direct Drive Turntable features high-torque as well as a superior quality, thus making this ideal for analogue beat-matching as well as scratch DJing. Combine this with DVS technology, and you have a turntable that is high performing as well a fantastic price.
Features
PLX-500 Included Accessories:
- Slipmat
- Dust cover with jacket stand
- Adapter for 45 EP records
- Headshell (with cartridge)
- Balance and shell weights
- Audio conversion cord:
- 1 Stereo pin plug (female)
- 1 Stereo mini-plug (male)
Pioneer DJM-750mk2 Main Features:
- NEW Boost Colour FX combines multiple FX control in a single dial
- Improved Beat FX with Level/Depth control
- Integrated 24-bit/96 kHz sound card for DVS control of DJ software
- Audio quality inherited from Pioneer’s pro-DJ range
- Supports three sampling rates (96 kHz/48 kHz/44.1 kHz)
- USB port enables direct recording to PC/Mac
- Fully MIDI assignable
- 3-band EQ and 3-band isolator
- P-LOCK Fader Caps
Specifications
PLX-500 specifications
- Power requirements： AC 100 V, 50 Hz/60 Hz
- Power consumption ： 11 W
- Main unit weight ：10.7 kg
- Max. dimensions (WxHxD) ：450 mm x 159 mm x 368 mm
- Output ：RCA × 1, USB (type B)
Turntable
- Drive method：Servo type direct drive
- Motor：3-phase brushless DC motor
- Braking system：Electronic brake
- Rotation speed：33 1/3 rpm, 45 rpm, 78 rpm
- Rotation speed adjustment range ：±8%
- Wow and flutter ： 0.15% or less WRMS
- S/N ratio： 50 dB or above
- Turntable： Aluminium die-casting Diameter: 332 mm
- Starting torque ： 1.6 kgf・cm or more
- Start time： Within 1 second (at 33 1/3 rpm)
Tonearm
- Arm type： Universal type S-shape tone arm, gimbal-supported type bearing structure, static balance type
- Effective length： 230.5 mm
- Overhang： 16 mm
- Tracking error： Within 3°
- Arm height adjustment range： 6 mm
- Stylus pressure variable range： 0 g to 4.0 g（1 scale 0.1 g）
- Proper cartridge weight ： 9.5g or less (single cartridge)
Cartridge
- Cartridge type： VM type
Headshell specifications
- Weight：10.0g
- Shell length：52 mm
- Finger Length：21mm

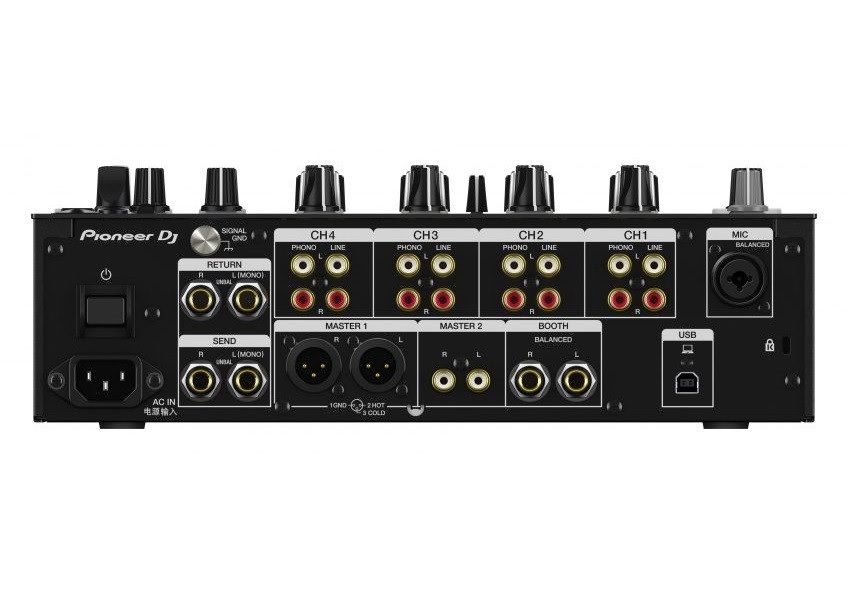

Pioneer DJM-750mk2 Tech Spec:
- Channels:Â Audio: 4, MIC: 1
- Inputs: CD/LINE×4(RCA), LINE×2 (RCA), PHONO×2 (RCA), MIC×1(XLR & ¼ inch PHONE combined use x1)
- Outputs: MASTER OUT×2 (RCA×1, XLR×1), BOOTH OUT×1(RCA),
- HEADPHONE MONITOR OUT×1 (top side ¼ inch PHONE), REC OUT×1 (RCA), DIGITAL OUT×1(COAXIAL)
- Other ports: SEND×1(¼ inch PHONE), RETURN×1(¼ inch PHONE), USB
- x 1 (top side B port), CONTROL×2 (F3.5 mm MINI JACK)
- Sampling rate: 96 kHz
- D/A converter: 24 bit
- A/D converter: 24 bit
- Frequency response:Â 20 Hz ~ 20 kHz
- Total harmonic distortion:Â 0.004% or less
- LINE INPUT S/N ratio:Â 106 dB or more
- Headroom:Â 19 dB
- USB sound card : INPUT: Stereo 4-channel, OUTPUT: Stereo 4-channel,
- 24-bit, Sampling rate: 96 kHz/48 kHz/44.1 kHz
- Electricity consumption:Â 30 W
- Max. external dimensions: 320 mm (W) × 376 mm (D) × 108 mm (H)
- Weight:Â 7.6 kg
